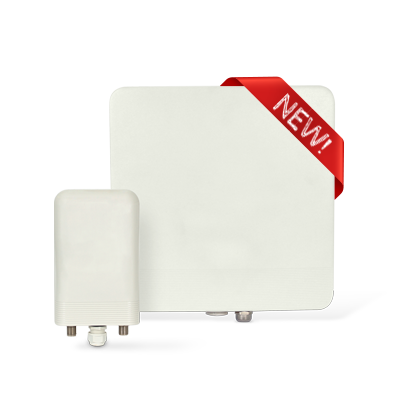

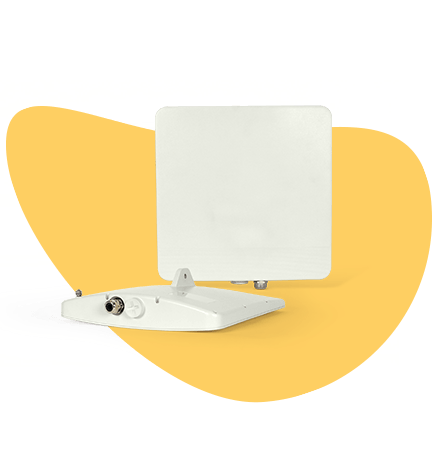

RADWIN NEO changes the quality vs price
paradigm for fixed wireless broadband connectivity!

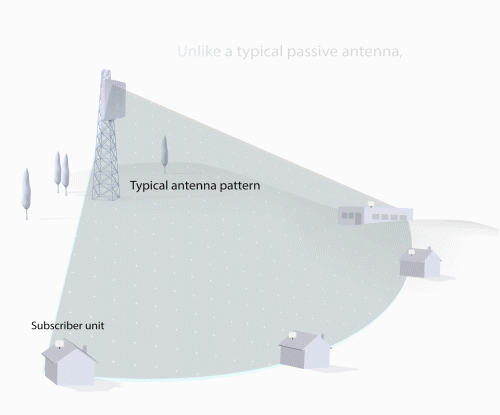

Instead of a typical wide beam antenna, RADWIN base station uses a narrow, steerable beam for uplink and downlink transmission.

Typically, unlicensed radio interference significantly reduces PtMP coverage and link stability, however, RADWIN’s narrow steerable beam rejects interference by approximately 18dB to ensure spatial interference filtering.

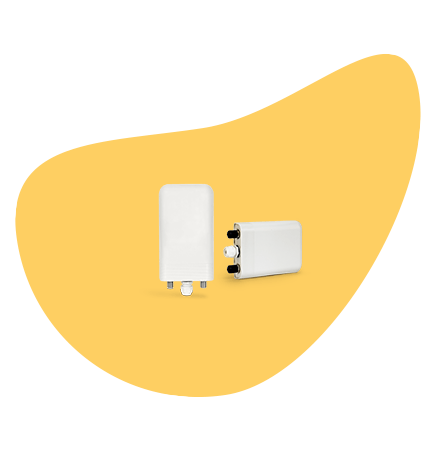

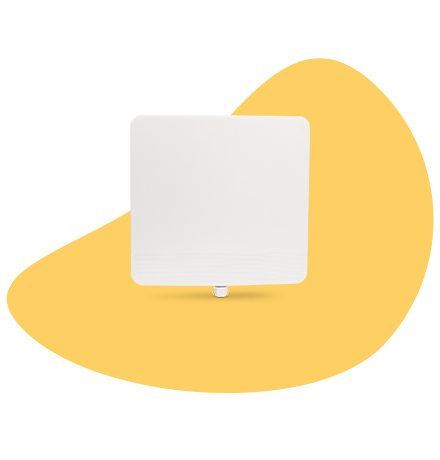

In addition, beamforming interference rejection improves the signal reception of remote subscriber units.

Imagine deploying a network in a noisy spectrum of –60dbm yet receiving performance of about -80dbm to extend range and capacity, therefore reducing the number of towers & network TCO.

RADWIN’s narrow beam, also in the downlink, eliminates self-interference between adjacent sectors and neighboring cells, enabling greater reuse of a given frequency channel.

NEO Series enables Frequency reuse 2, meaning only 2 channels are required per network and carrier.

As a beamforming antenna is narrower than a typical dual horn antenna (60˚), greater immunity is assured.

It only requires 4 radios to cover 360˚ vs. 6 radios for the horn antenna.

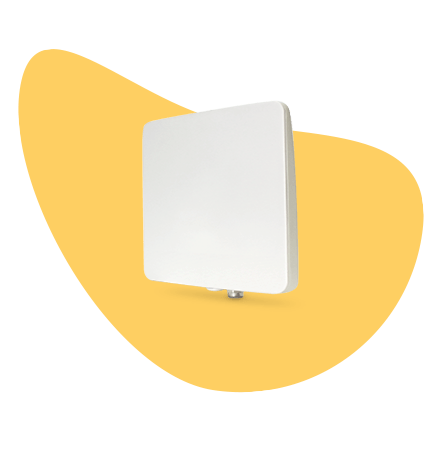

A base station with dual carrier incorporates two radios into a single unit.

Both radios work in separate frequency channels and feed separate antennas.

Each pair of radios and antennas cover the overall sector but simultaneously serve a different group of customers.

Dual carrier results in higher capacity per base station unit, saving upon tower space and rental costs. More significantly, it offers PrimeCarrier capabilities.

PrimeCarrier always assures a reliable quality transmission by dynamically switching between the carriers per individual Subscriber Unit when:

• Downlink performance is degraded (typically due to radio interference).
• A carrier is overloaded with traffic.
• RADAR is detected.

High capacity and low latency are essential for quality connectivity.  However, fluctuation over time, of these parameters, results in degradation of the end-customer experience.

Unlike other alternatives, NEO’s air-interface continuously shares capacity between multiple IP sessions, assuring fixed latency and capacity for a greater customer experience.
